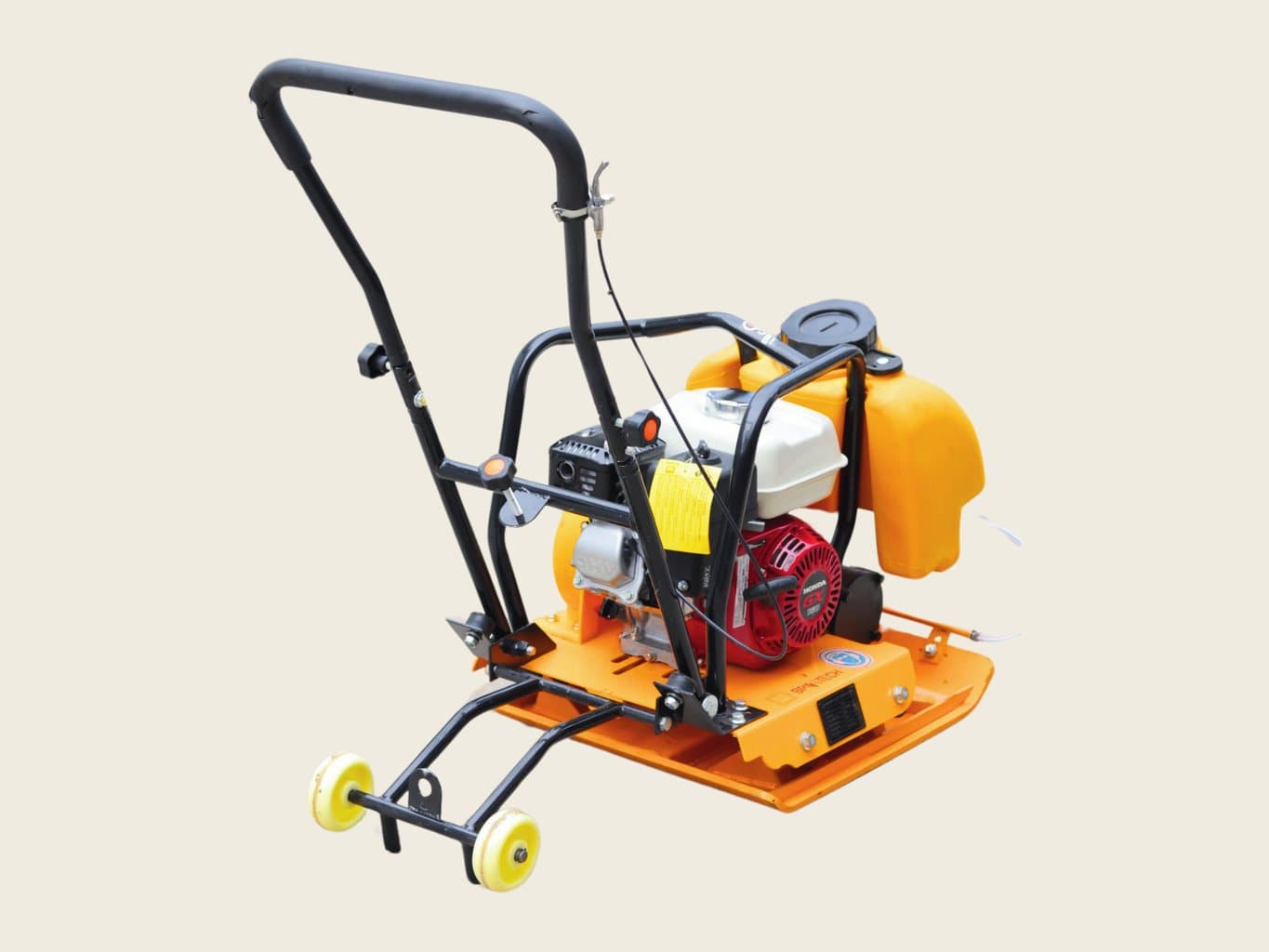

Plate Compactor
Vibrating plate that compacts soil, gravel and paver beds.
- Models
- ECM/CG/5/TP · ECM/GRV/5 · PC-90/GX160 · PC-90/CG/3/SP
- Compaction
- 5 t · 5 t · 3.5 t · 3 t
- Power
- 5 HP motor · 5 HP Greaves · 5 HP Honda · 3 HP single-phase motor
- Plate
- 20 × 28 in (12 mm) or 18 × 23 in (10 mm)
- Depth effect
- 10 – 12 in approx.
- Output
- 2800 – 3000 sq ft per hour
How it works
A heavy plate vibrates fast against the ground, shaking loose soil and gravel into a firm, packed base before paving or flooring.
Used by Road, paver-block, landscaping and building contractors.
