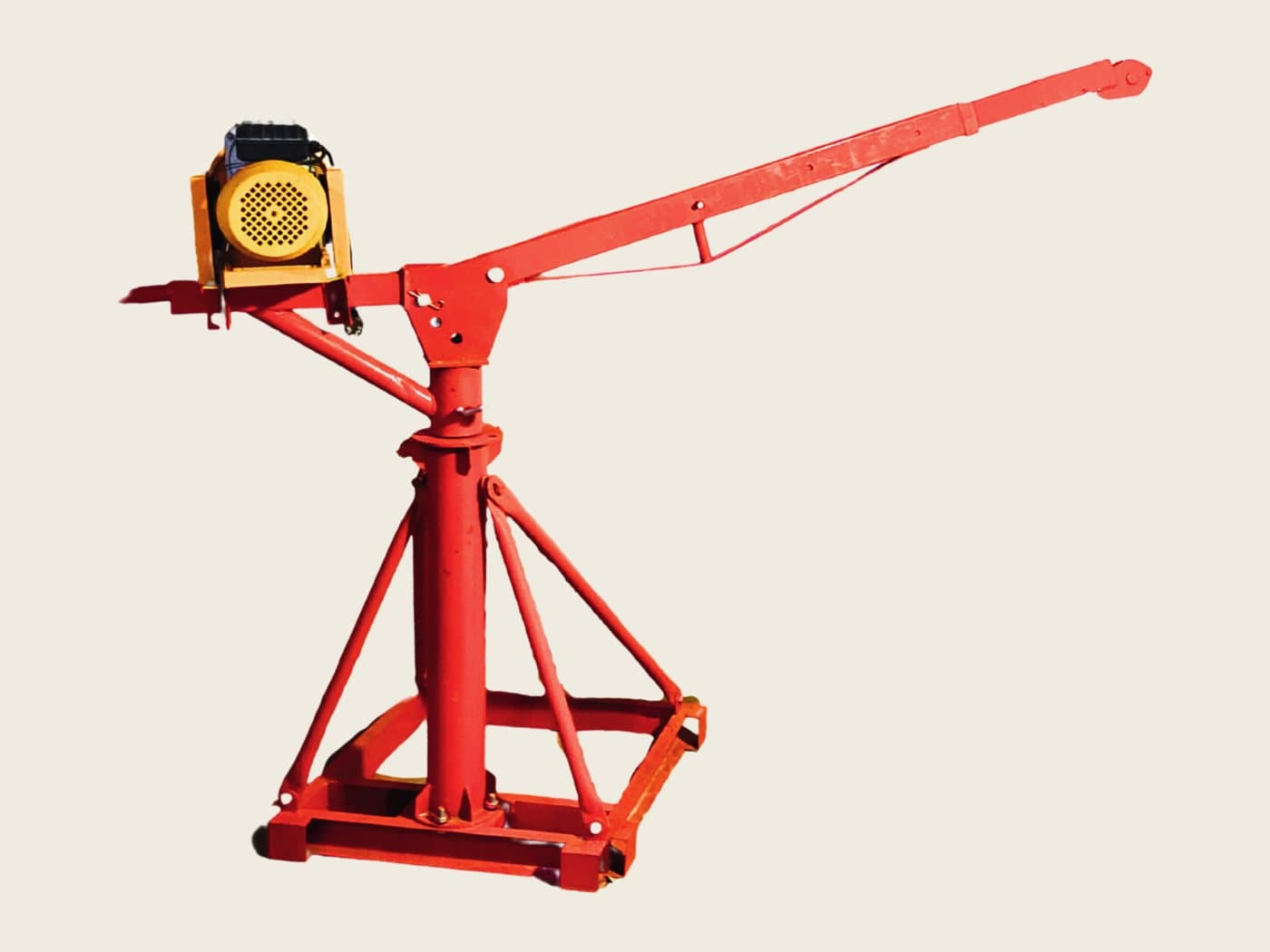

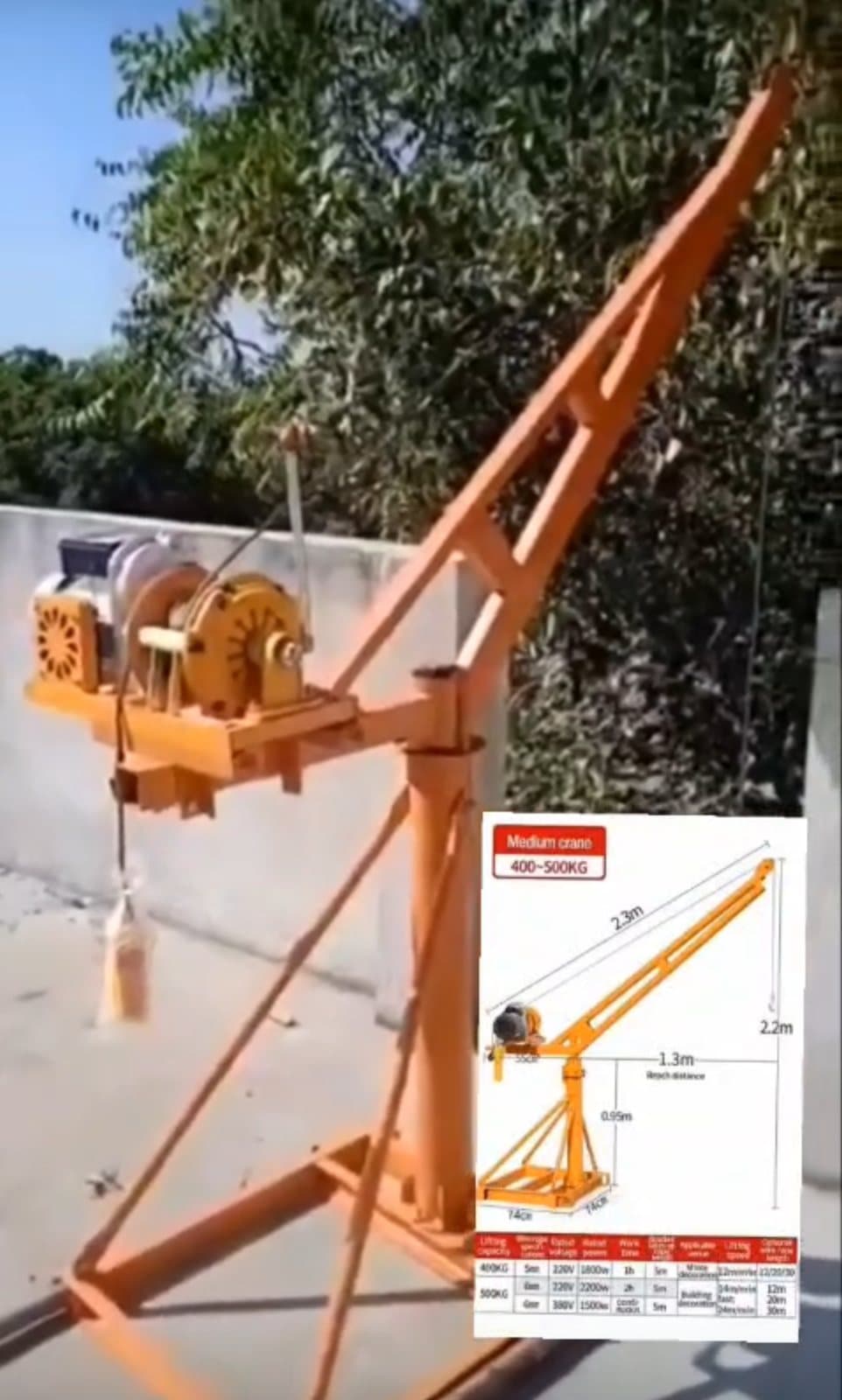

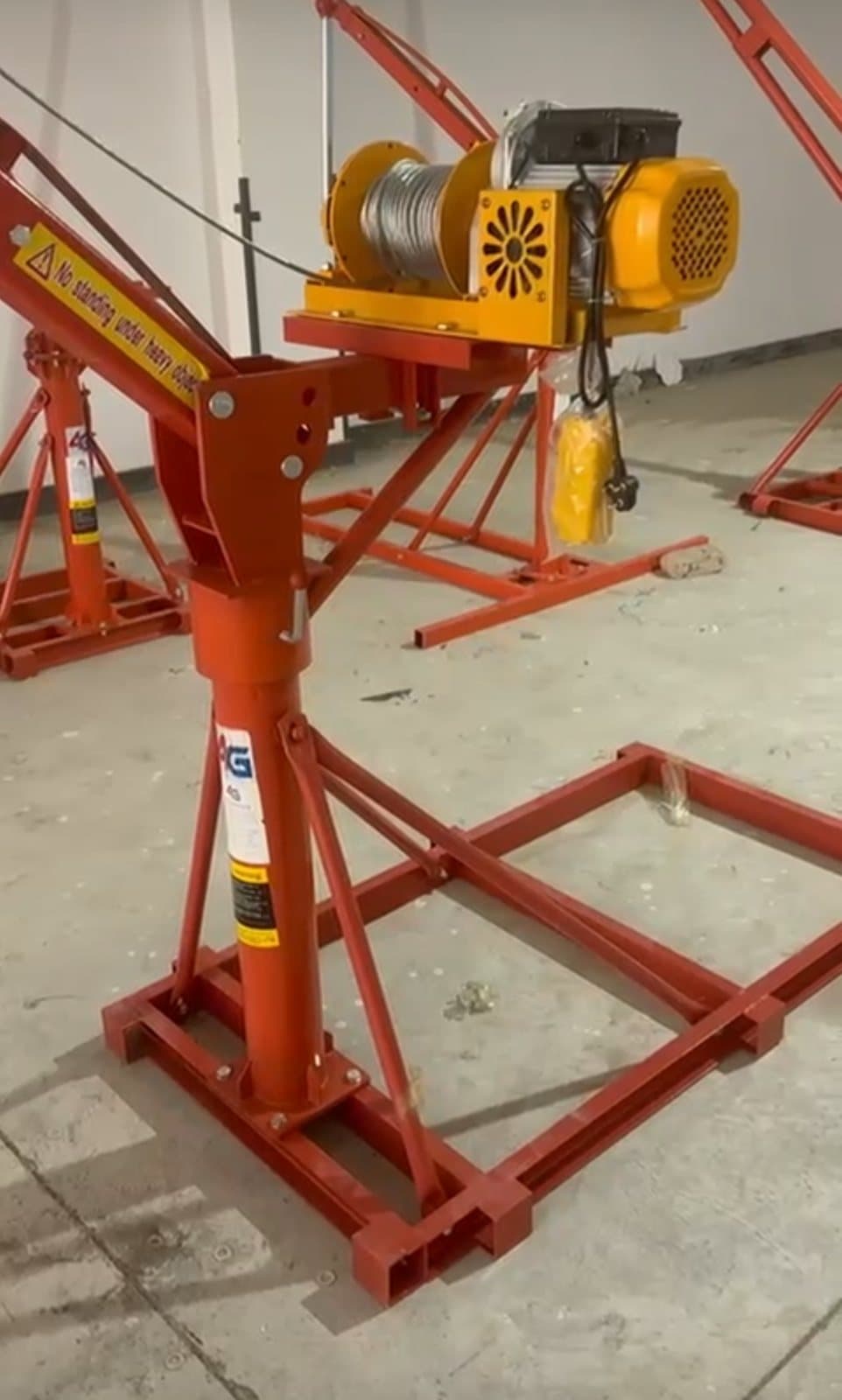

Mini Construction Crane
Rooftop crane that lifts bricks, cement and steel from the ground.
- Frame
- 500 kg frame
- Winch
- 1 ton, with clutch and handle
- Safe loading
- 350 kg (as printed on the spec sheet)
- Motor
- 5 HP, 100% copper winding
- Wire rope
- 8 mm galvanised, 40 – 50 m lifting height
- Speed
- 9 / 18 m per minute
- Rotation
- 360°
- Frame weight
- 53 kg
- Control
- Pendant remote with contactor
How it works
A swivelling arm on a weighted base, with a winch fitted. Set it at the edge of a roof or slab and lift material up from the ground — bricks, cement bags, steel, or a loaded wheelbarrow.
It saves labour carrying loads up the stairs, and turns a full circle to set loads down where they are needed.
Used by House builders, contractors, renovation work.
Never lift above the rated capacity, and never stand under a raised load. Every machine comes with its test certificate — ask us about yearly inspection.
